8. Office room
Related Paper
If you want to use the dataset or scripts on this page, please cite the following paper.
Y. Chen, C. Han, Z. Yu, and G. Wang, “140 GHz Channel Measurement and Characterization in an Office Room,” in IEEE International Conference on Communications (ICC), pp. 1-6, Jun. 2021.
Overview

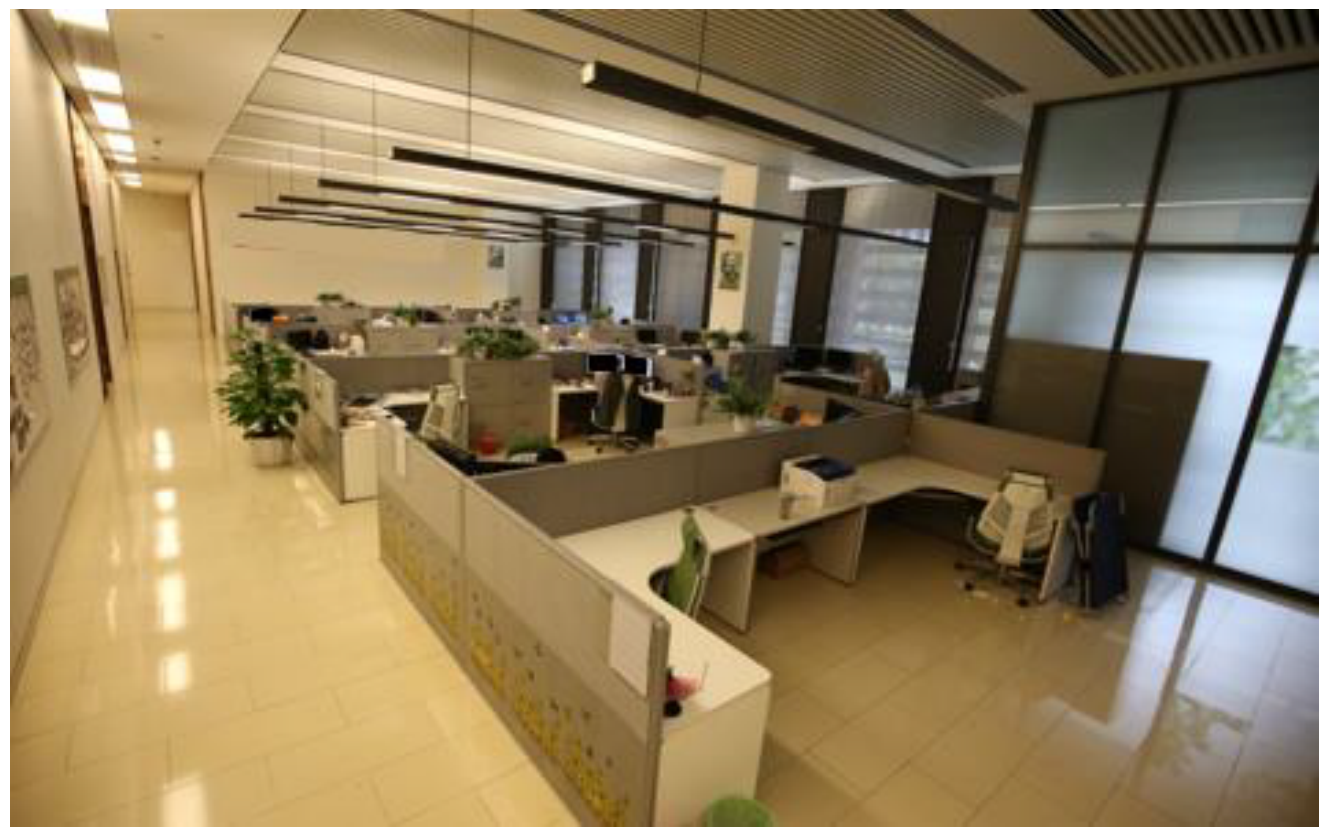

The dimensions of the office room in our channel measurement campaign are 30m × 20m, including an hallway and an the office area. In the north of
the office room, there is a 30m long hallway. In the the officearea, the space is partitioned by plastic boards into individual personal zones. On each desk, there are two monitors as well as other work-related items.

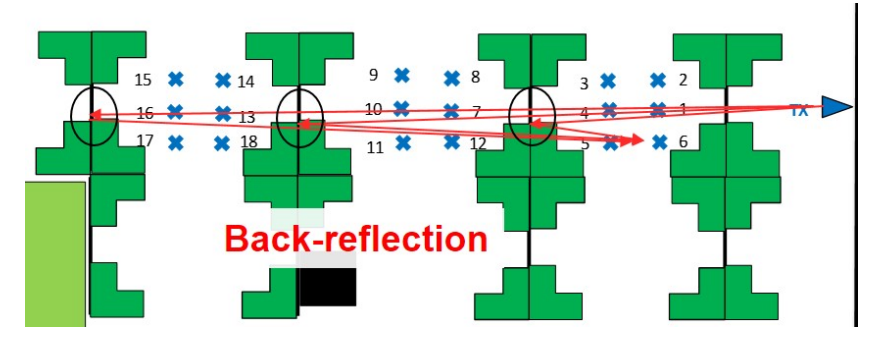

Measurement Deployment
| Frequency | 130-143 GHz |
| # Position | LoS*54, NLoS*20 |
| # CIR | 74*36*5 |
| Distance | 2-30 m |
| Tx height | 2 m |
| Rx height | 1.4 m |

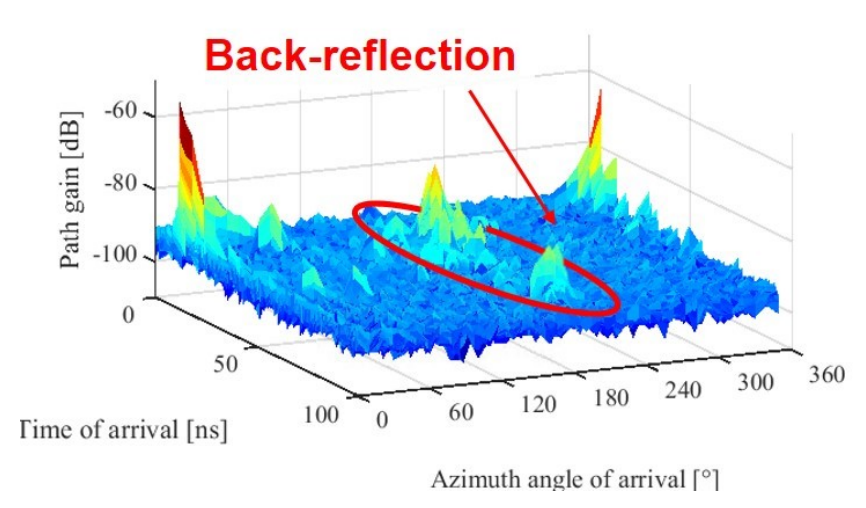

Data Visualization
